Eletrônica Co. de Shenzhen Shichuangxinke, Ltd
o profissional faz a boa qualidade, fornece produtos e serviço perfeitos para cada cliente.
 |
| Lugar de origem: | CHINA |
| Marca: | SCXK |
| Certificação: | CE/ROHS/FCC/ISO/UL |
| Número do modelo: | P10 |
| Quantidade de ordem mínima: | sqm 10 |
|---|---|
| Preço: | negotiation |
| Detalhes da embalagem: | caixa da madeira compensada, caso do voo, você escolhe o que você gosta. |
| Tempo de entrega: | 7-12 dias de trabalho |
| Termos de pagamento: | T/T, Western Union, MoneyGram |
| Habilidade da fonte: | sqm 5000 pelo mês |
| Aplicação: | o perímetro conduziu o anúncio da exposição | Cor: | Cor completa |
|---|---|---|---|
| Passo do pixel:: | 5mm6mm, 8mm, 10mm | Number modelo:: | tela exterior do perímetro de P8 P10 |
| Nome do produto::: | o perímetro do estádio conduziu a tela | Tamanho do módulo::: | 320mmX160mm |
| Tamanho de armário::: | 960mm*960mm ou personalizado. | Refresque a taxa::: | 1920Hz~3840Hz |
| Certificado: | Certificações de RoHS SASO do CE | Brilho::: | 6500nits |
| Garantia::: | 2-3years | Termo do pagamento:: | T/T, W/U, |
| Realçar: | o estádio 960X960 conduziu a exposição,o estádio 6500nits conduziu a exposição,Exposição P10 conduzida perímetro |
||
Parameter:
| Pixel pitch | P10 | ||
| Module Parameters | Pixel pitch | 10 mm | |
| Pixel Density | 10000 pixels/m2 | ||
| LED Shape | SMD | ||
| LED Configuration | 1R1G1B | ||
| Module Resolution | 32*16 pixel | ||
| Module Size | 320*160 mm | ||
| Drive Method | 1/4, 1/2 | ||
| Cabinet Parameters | Cabinet Resoltuion | 96*96 | |
| Cabinet Size | 960*960 mm | ||
| Cabinet Weight | 48 kg/m2 | ||
| Display Parameters | Optical | Brightness | ≥2000 cd/m2 |
| Viewing angle | H/V 120/110 | ||
| Best Viewing Distance | 10-35m | ||
| Display Color | 16.7 million | ||
| Grey Scale | 10bits/1024levels | ||
| Power | Max power consumption | 900 W/m2 | |
| Ave power consumption | 500 W/m2 | ||
| Working Voltage | 220V / 110V | ||
| Control system | Frame Frequency | 60-85 HZ | |
| Refresh Rate | ≥7000 HZ | ||
| Data Transmission | CAT 5/ Optic Fiber | ||
| Image Source | S-Video, PAL/ NTSC | ||
| Controlling system | linsn, Nova, Mooncell | ||
| Format | Video Compatibility DVI, VGA, composite | ||
| Reliability | Working Temperature | -20~50 ℃ | |
| Working Humidity | 10-90% RH | ||
| Life Span | 100,000 Hours | ||
| MTBF (Ave No Faliure Time) | 10000 Hours | ||
| Pixel failing Rate | 0.01% | ||
| IP Rate | IP 65 | ||

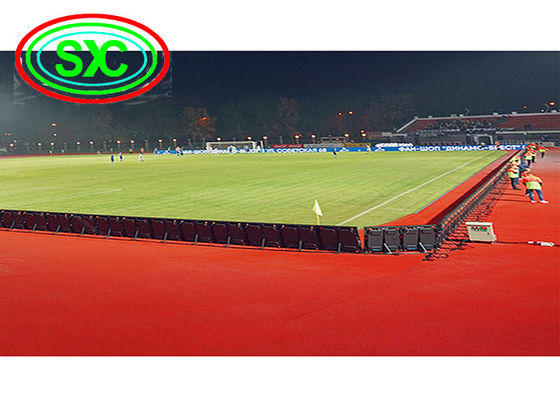

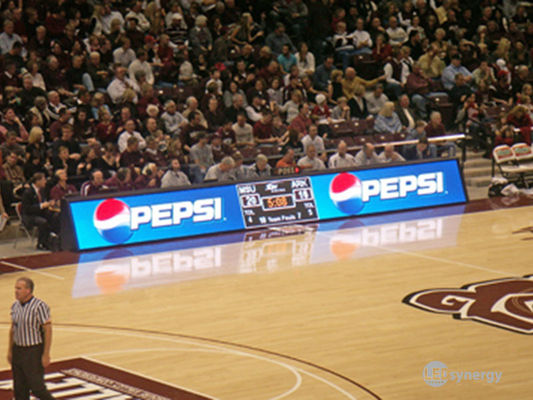

Our case

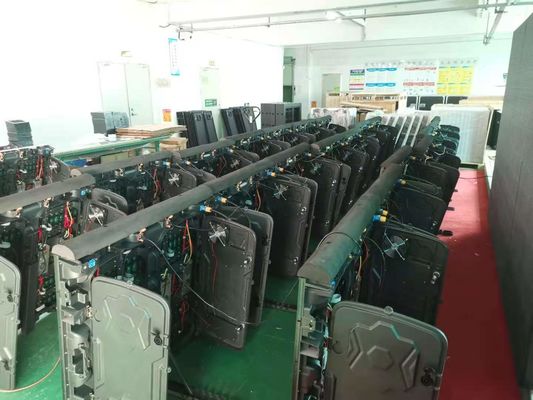

Module process
Product item
Many other hot product, welcome to visit our company!
company profile
Certificate
Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
Eachinled has a perfect service system, including pre-sale service, in-sale service and after-sale service. To provide high quality service for our customers, we train every salesman with necessary product maintenance knowledge and organized a Technology Supporting Department with a group of excellent and professional engineers. Any problem you can contact us at any time you like.
Pre-sale service:
1. Reply enquiries in 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
4. Data sheet and samples offer.
5. Other services, such as special packing design, factory visiting and so on.
In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
3. Photos and videos as per customer's requirement.
4. Free spare parts.
After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6. Special service for big project, such as stadium, exhibitions, squares and so on.
