| Lugar de origem: | China |
| Marca: | SCX |
| Certificação: | CE/ROHS/FCC/ISO/UL |
| Número do modelo: | P4.81 |
| Quantidade de ordem mínima: | 10sqm |
|---|---|
| Preço: | negotiation |
| Detalhes da embalagem: | caso de madeira, caso do voo, caixa etc., você escolhe de que você gosta. |
| Tempo de entrega: | 7-16 dias de trabalho |
| Termos de pagamento: | T/T, Western Union, MoneyGram, L/C, D/A, D/P |
| Habilidade da fonte: | 5500sqm pelo mês |
| Aplicação:: | EXTERIOR, feira profissional, fundo de fase | Cor:: | Cor completa |
|---|---|---|---|
| Tamanho do painel:: | 500x500mm | Passo do pixel:: | 4 |

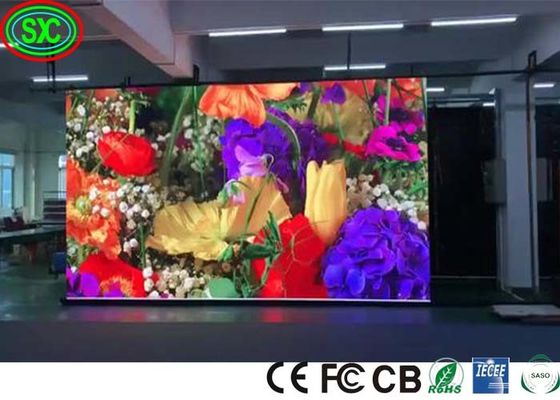

| Nome do produto:: | Visualização ótica conduzido exterior da exposição P3 P3.91 P4 P4.81 de Hd | Brilho (lêndeas):: | 4500~5500 |
| Tamanho do módulo (W*L/mm):: | 250x250 | Tamanho de armário (L*W*H/mm):: | 500x500x87 |
| Palavra-chave: | visualização ótica stageled alugado | ||
| Realçar: | Tela do diodo emissor de luz da cor P4.81 completa,tela do diodo emissor de luz da cor completa de 500x500mm,5500 lêndeas encenam os painéis conduzidos |
||
Program Features
1. High refresh, high gray-scale, high-resolution and high-contrast, coupled with the industry's advanced point by point correction technology, making the display pictures more gorgeous and vivid.
2. With high contrast, consistent white balance, uniform display color, high-definition screen, it can meet the requirements of live
3. Frequent Video source switching and powerful seamless switching system.
4. Not only easy to install and dismantle, but also have cost advantages which fit for making large-scale stage background
5. With professional audio and video processing systems to support live, large and clear live images, breaking the seat restrictions, allowing remote viewing performance easier, giving an immersive audio-visual feast. Wonderful scenes, slow-motion playback, close-up, creating a special background environment.
The Technology Parameter:
| No. | Item | Parameter |
| Pixel | Pixel pitch | 4.81mm |
| Pixel configuration | 1R1G1B | |
| Light | LED specification | SMD3528 |
| Module | Module size | W250MM*H250MM |
| Pixel resolution | W52dots×H52dots | |
| Cabinet | Conbinet size | W500MM*H500MM |
| Box resolution | W104dots*H104dots | |
| Screen body | Driving mode | Constant current 1/13 scan |
| Pixel density | 43222dots/ M | |
| Brightness | 6000-8000cd/ M | |
| View angle | Horizontal 120 degrees vertical 60 degrees | |
| Viewing distance | 5-100mm | |
| Frame rate | >60 | |
| Refresh frequency | 480Hz | |
| Span life | >100000hours | |
| Voltage | AC220V±15% 47～64HZ | |
| Maximum power/㎡ | 700W/ M | |
| Average power/㎡ | 300W/ M | |
| Mean Time Between Failure | >10000hours | |
| Working temperature | -10℃～+60℃ | |
| Working humidity | 10%-95%RH |
our case
Company profile
Shenzhen SCXK Electronic Co.,Ltd has the standard new factory, and about 100 employees. We have outstanding R&D department and after-sell service workers, and separately design ability. Our product mainly included led single dual color display, led indoor full color display; led outdoor full color display, led wireless car used screen etc. It can be used on the shopping more, bank, bus station, train station, center of downtown, airport, school, factory, bus, taxi and so on.. We adapt many methods and very good after-sell service to sell our product all over the word. Whenever and wherever we are, we always take the principle that is: professional makes good quality, good price product market to provide perfect product and service for our customers.
Certificate
1) Before delivery, we will test the display, and keep it light up for 72 hours, and check all the parts of the display to confirm it is fine for delivery, include waterproof testing and the vibration test .You can send your engineer to our factory for inspection before delivery.
2) Delivery (Time): FOB-china (15-20 working days after the advanced payment).
3) Installation: We offer you the engineer to install the LED display, but you have to pay for the tickets fare; or we offer you the training on the LED display installation and repairing for free after you live in our company,or we can guide you how to install the screen by remote control.
5) Spare parts: we offer: modules with driving board;power supply; power connecters; data cables; electrical fans some screws and so on.
6) Service after sales, if you have any questions about our product, you can inform us by mail or call, and we will reply you in 24 hours when we get you E-mail or call, and offer you a good solution for your problem.
Quality warranty: Two years quality warranty and lifetime technology support and maintenance from the third year. If you improperly operates or something is wrong with our products, we are responsible for the maintaining and repairs instruction or guide free of charge.
