Eletrônica Co. de Shenzhen Shichuangxinke, Ltd
o profissional faz a boa qualidade, fornece produtos e serviço perfeitos para cada cliente.
 |
| Lugar de origem: | CHINA |
| Marca: | SCXK |
| Certificação: | CE/ROHS/FCC/ISO/UL |
| Número do modelo: | P2.5 |
| Quantidade de ordem mínima: | 3 |
|---|---|
| Preço: | negotiation |
| Detalhes da embalagem: | caso de carton+wooden ou caso do voo. |
| Tempo de entrega: | 5-8 dias de trabalho |
| Termos de pagamento: | T/T, Western Union |
| Habilidade da fonte: | 5000sqm um o mês |
| Aplicação:: | Interno | Cor:: | Cor completa |
|---|---|---|---|
| Tamanho do painel:: | 640mm x 1920mm | Passo do pixel:: | 2.5mm |
| Nome do produto:: | Exposição conduzida interna do cartaz P2.5 | Brilho:: | 1200cd/sqm |
| Densidade do pixel:: | 160000dots/sqm | Tamanho do módulo:: | 320x160mm |
| Refresque a taxa:: | 1920 hertz | Fonte de alimentação:: | G-energia |
| Modo da movimentação:: | 1/32 de varredura | Função da exposição:: | Vídeo |
| Realçar: | Exposição conduzida magnética do cartaz SMD2121,exposição conduzida magnética do cartaz 1200cd/Sqm,tela do cartaz de 640X1920mm |
||
Feature
1) Super light, each LED poster screen weighs 45KG.
2) Easy to install and convenient to move it.
3) Front and rear maintenance.
4) 2- 6pcs LED posters can be joined together and produced a larger complete picture.
5) It can be controlled by 3G,4G, WIFI, USB and HDMI.
6) It achieves to send video or pictures by intelligent terminal APP.
7) Support floor standing, base standing, wall-mounted and hanging installation.
Specification
| Pixel Pitch | 2.5mm |
| Pixel Density | 160000dots/sqm |
| Color Configuration | 1R1G1B |
| LED Package | SMD2121 |
| Module Size | 320mm x 160mm |
| Module Resolution | 128dots x 64dots |
| Drive Mode | 1/32 Scan |
| Drive IC | ICN2153 |
| Brightness | 1200 cd/sqm, adjustable by software |
| Viewing Distance | 2m-50m |
| Viewing Angle | H: 140°; V:140° |
| Refresh Rate | 3840HZ, adjustable by software |
| Frame Rate | 120frame/s |
| Grey Scale | 16.7M colors(Synchronized) |
| Color Temperature | R.G.B brightness 256 level adjustable |
| Power Input | AC110V/ 220V ±10%, 50HZ |
| Max Power Consumption | 850W/sqm |
| Ave. Power Consumption | 350W/sqm |
| Storage Temperature | -30℃~+70℃ |
| Working Temperature | -20℃~+50℃ |
| Blind Spot Rate | <1/10000 |
| MTBF | >10,000 Hours |
| Life Span | >100,000 Hours |
| Waterproof Level | IP43 |

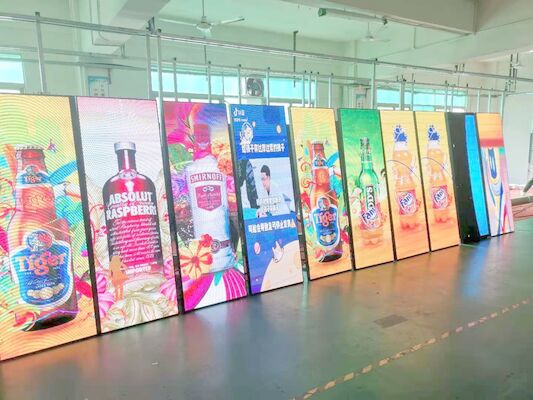

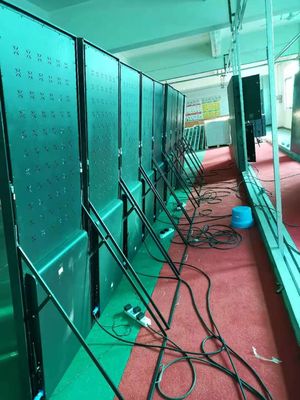

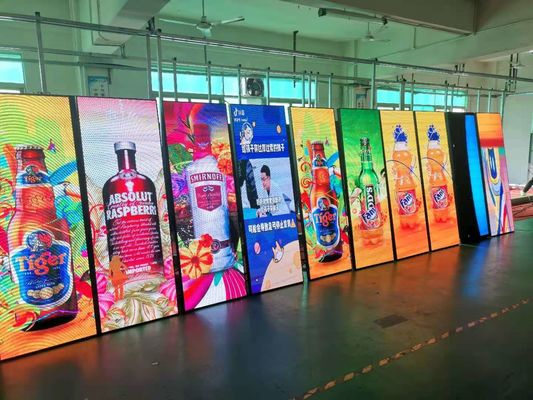

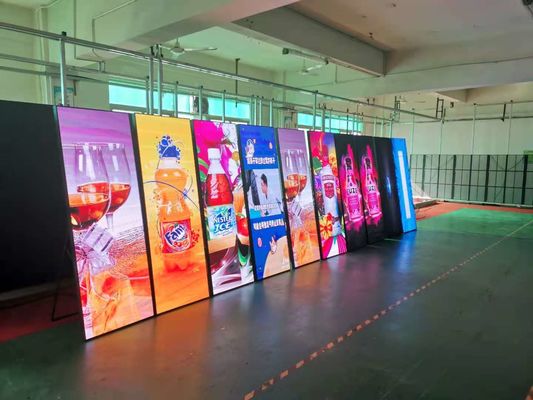

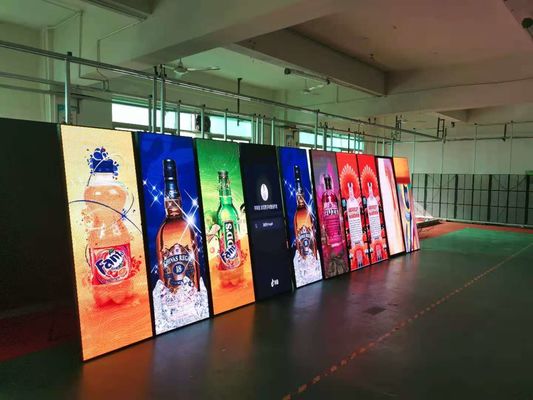

indoor P2.5 poster LED display details and pictures
Why choose us
Continues Quality
With more than 10 years experience in led display,equipments are updated regularly.What’s more,unique standardized and module production ensure our products continuous quality.
Competitive Price
With large scale production capacity and professional production technology,our company have built effective modular production.We always stick to promote the technical innovation and reduce cost to benefit customers.
Fast Delivery
Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency inventory will be used to maintain your uninterrupted supply of the products.
Perfect Service
Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to you.
After-sales:We will track the products usage and then constantly perfect our products.
Company profile
Shenzhen SCXK Electronic Co.,Ltd established in 2009 and has the standard new factory, about 100 employees. We have outstanding R&D department and after-sell service workers, and separately design ability. Our product mainly included led indoor full color display, led outdoor full color display,led indoor full color display, led wireless car usd screen, poster screen,transparent screen etc.It can be used on the shopping mall, bank, bus station, train station, center of downtown, airport,school,factory,bus,taxi and so on. We adapt many methods and very good after-sell service to sell our product all over the world. Whenever and wherever we are, we always take the principle that is: professional makes good quality,good price product market to price product market to provide perfect product and service for our customers.
Certificate
our service
Eachinled has a perfect service system, including pre-sale service, in-sale service and after-sale service. To provide high quality service for our customers, we train every salesman with necessary product maintenance knowledge and organized a Technology Supporting Department with a group of excellent and professional engineers. Any problem you can contact us at any time you like.
Pre-sale service:
1. Reply enquiries in 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
4. Data sheet and samples offer.
5. Other services, such as special packing design, factory visiting and so on.
In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
3. Photos and videos as per customer's requirement.
4. Free spare parts.
After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6. Special service for big project, such as stadium, exhibitions, squares and so on.
