| Lugar de origem: | CHINA |
| Marca: | SCXK |
| Certificação: | CE/ROHS/FCC/ISO/UL |
| Número do modelo: | P3 |
| Quantidade de ordem mínima: | 3 |
|---|---|
| Preço: | negotiation |
| Detalhes da embalagem: | caso de carton+wooden ou caso do voo. |
| Tempo de entrega: | 5-8 dias de trabalho |
| Termos de pagamento: | T/T, Western Union |
| Habilidade da fonte: | 5000sqm um o mês |
| Aplicação:: | comércio | Cor:: | Cor completa |
|---|---|---|---|
| Tamanho do painel:: | 576x1920x75mm | Nome do produto:: | P3Indoor conduziu a exposição do cartaz |
| Brilho:: | 1200cd/sqm | Densidade do pixel:: | 160000dots/sqm |
| Tamanho do módulo:: | 192x192mm | Refresque a taxa:: | 1920 hertz |
| Modo da movimentação:: | 1/32 de varredura | Temperatura de trabalho:: | -20 grau a 60 graus |
| Ângulo de visão:: | 140 /140 | ||
| Realçar: | cartaz portátil do diodo emissor de luz da propaganda 1200cd/Sqm,Cartaz portátil do diodo emissor de luz da propaganda P3,Exposição estando livre do cartaz SMD2121 |
||
Feature
1) Super light, each LED poster screen weighs 45KG.
2) Easy to install and convenient to move it.
3) Front and rear maintenance.
4) 2- 6pcs LED posters can be joined together and produced a larger complete picture.
5) It can be controlled by 3G,4G, WIFI, USB and HDMI.
6) It achieves to send video or pictures by intelligent terminal APP.

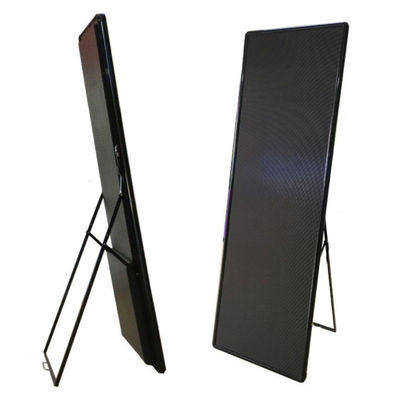

7) Support floor standing, base standing, wall-mounted and hanging installation.
Specification
| Pixel Pitch | 2.5mm |
| Pixel Density | 160000dots/sqm |
| Color Configuration | 1R1G1B |
| LED Package | SMD2121 |
| Module Size | 320mm x 160mm |
| Module Resolution | 128dots x 64dots |
| Drive Mode | 1/32 Scan |
| Drive IC | ICN2153 |
| Brightness | 1200 cd/sqm, adjustable by software |
| Viewing Distance | 2m-50m |
| Viewing Angle | H: 140°; V:140° |
| Refresh Rate | 3840HZ, adjustable by software |
| Frame Rate | 120frame/s |
| Grey Scale | 16.7M colors(Synchronized) |
| Color Temperature | R.G.B brightness 256 level adjustable |
| Power Input | AC110V/ 220V ±10%, 50HZ |
| Max Power Consumption | 850W/sqm |
| Ave. Power Consumption | 350W/sqm |
| Storage Temperature | -30℃~+70℃ |
| Working Temperature | -20℃~+50℃ |
| Blind Spot Rate | <1/10000 |
| MTBF | >10,000 Hours |
| Life Span | >100,000 Hours |
| Waterproof Level | IP43 |
Specifications
| Item | Parameter | Item | Parameter |
| Model Number | HBY- S300 | Module Size | 192mm*192mm |
| Pixel Pitch | 3mm | Pixels Density | 111111dots/m2 |
| Pixel Configuration | 1R1G1B | LED Package Mode | SMD 3 IN 1 lamp ZJLead-LED |
| Pixel Resolution | 64dots(W)*64dots(H) | Max Power | 25W |
| Module Thickness | 17mm | Weight | 35kg |
| Drive Type | Constant current | Scan Mode | 1/32 scan |
| Brightness of White Balance00 | ≥1000 nit | Port Type | HUB75E |
