Eletrônica Co. de Shenzhen Shichuangxinke, Ltd
o profissional faz a boa qualidade, fornece produtos e serviço perfeitos para cada cliente.
 |
| Place of Origin: | China ,Guang Dong |
| Marca: | Shichuangxinke |
| Certificação: | CE RoHS FCC CCC TUV UL |
| Model Number: | SCXK-P4 |
| Minimum Order Quantity: | Negotiations |
|---|---|
| Preço: | Negotiations |
| Detalhes da embalagem: | Caixa de madeira, caixa de madeira, cartão, depende de si. |
| Delivery Time: | 7-10 working days after deposit payment received |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Habilidade da fonte: | 5000 m2 por mês |
| Resolution/mm: | 4 | Configuração de pixels: | 1R1G1B |
|---|---|---|---|
| Scanning Mode: | 1/8 scanning | Module Size: | 256x128MM |
| cabinet size: | 512x512MM | Materiais: | Alumínio |
| Garantia: | 3-5 anos | application: | stadium,airport,shopping mall,street advertising |
| certificates: | CE RoHS FCC CCC UL |

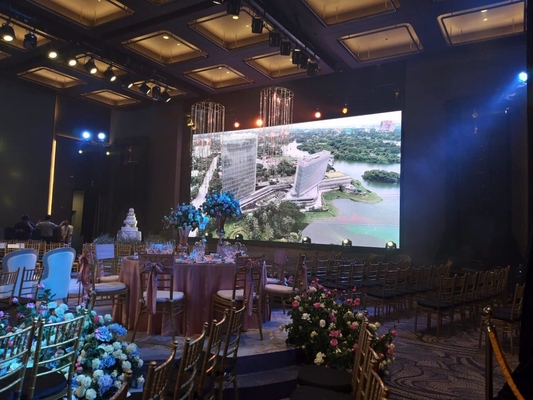

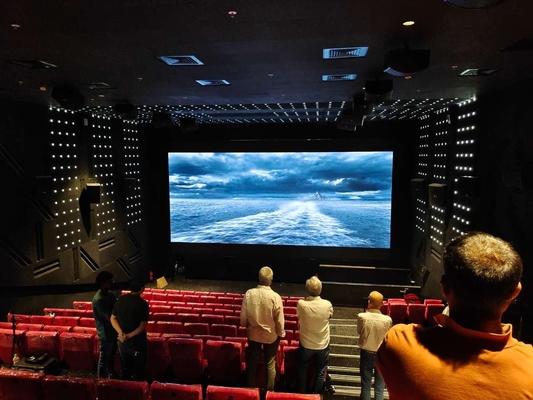

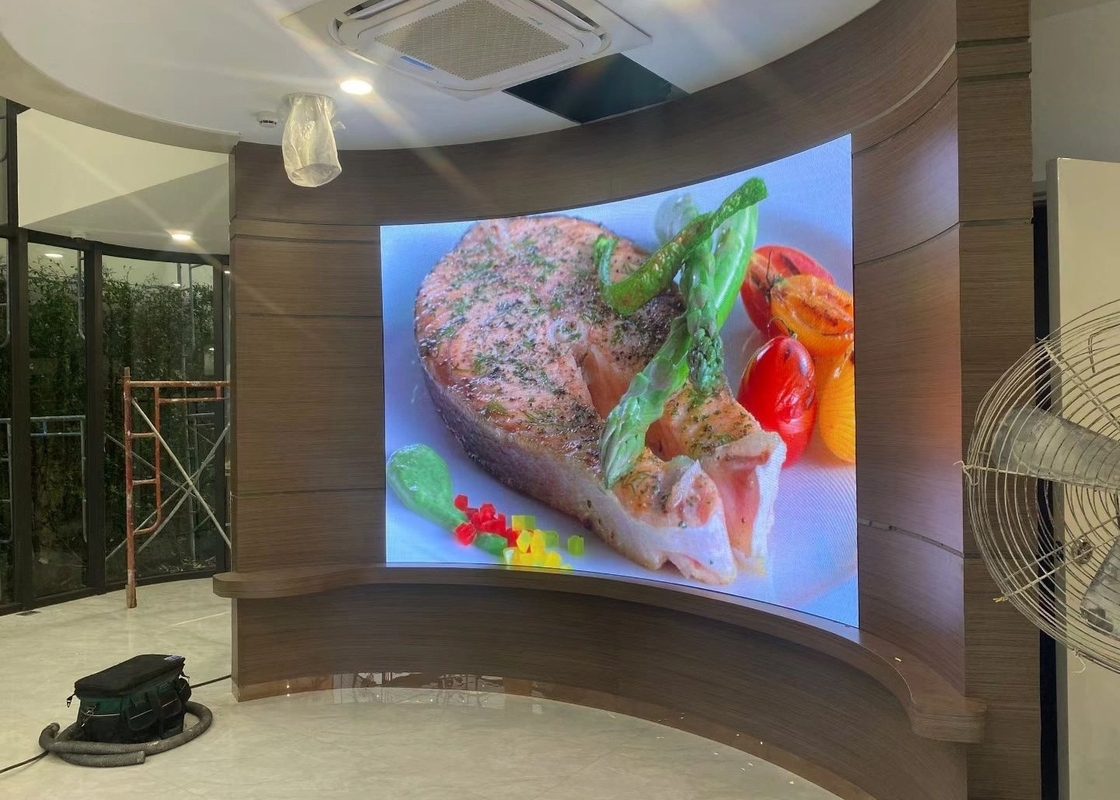

Waterproof HD P4 Indoor Full Color LED Display advertising led billboard for commercial / stage
Trading Terms:
Customs
1. The price you pay for this item does not include any customs duties. Our company is not responsible for any customs duties of the destination company.
2. We try our best to help you reduce or avoid any GST or VAT or other import taxes, but we cannot guarantee that no taxes will be charged as it depends on the policy of your country.
3. Please note that the customs offices of all countries have the right to inspect all mails in their countries and impose customs duties on these items. SCX co.,ltd is not responsible for any import duties/taxes.
Shipping
1. SCX has signed shipment agreement with famous express company agents (Like DHL, FedEx, TNT and EMS). And can get great discount from them, we can offer cheapest shipment cost to you. And the Shipment is traceable online. We will tell you the tracking number as soon as we ship out.
2. Items are shipped after payment is confirmed.
3. We ship items via EMS,DHL,UPS,FEDEX or Airmail.
4. We're not responsible for any accidents ,delays or other issues that are the responsibility of shipping service.
5. Any importing charges or fees are the buyer's responsibility.
Specifications :
| outdoor SMD P4 | |||||
| Resolution/mm | 4 | ||||
| Pixel configuration | 1R1G1B | ||||
| Pixel density/pixels/m² | 62500/m² | ||||
| Module resolution | 256x128 | ||||
| Module size/mm | 512x512MM | ||||
| View distance | 14-300m | ||||
| Single point brightness adjust | Can be added | ||||
| Single point color adjust | Can be added | ||||
| White balance brightness | >7500cd/㎡ | ||||
| Color temperature | 6500K-9500K | ||||
| Horizontal view angle | 120(degrees) | ||||
| Vertical view angle | 60(degrees) | ||||
| Signal Process bit | 10 or 16bit | ||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | ||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | ||||
| Driving mode | Constant driving current | ||||
| Scanning mode | 1/8 SCANNING | ||||
| Frame rate | 60Hz | ||||
| Refresh frequency | >3000Hz | ||||
| Control mode | Computer synchronous | ||||
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted | ||||
| 255 steps. No grey loss | |||||
| Out of control point | <1/10000 | ||||
| Working hours | ≥72hours | ||||
| Mean Time Between Failure | >5000hours | ||||
| Life time | 100000hours | ||||
| Life-all-white(brightness halving) | 50000hours | ||||
| Environment temperature range | Operating temperature range: -20-45℃ | ||||
| Self-check technology | LED spot self-check, communications check, power check, | ||||
| temperature monitor(need customization) | |||||
| Remote monitoring | Remote supervision and control, record potential fault, | ||||
| send out warning signs to the operators.(need customization) | |||||
| Software environment | WindowsNT,Windows1999,WindowsXP | ||||
| Luminous point width between centres | Deviation<3% | ||||
| Brightness uniformity | <10% | ||||
| Color uniformity(chromaticity coordinate) | ±0.003 | ||||
| Power supply request | AC85-264V(50Hz-60Hz) | ||||
| Contrast | (1000:1) | ||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | ||||
| Humidity(working) | working:10-95% | ||||
| Humidity(storing) | storing:10-95% | ||||
