Lugar de origem: | Shenzhen na China |
Marca: | SCXK |
Certificação: | CE/ROHS/FCC/ISO/UL |
Número do modelo: | P8 |
Quantidade de ordem mínima: | sqm 3 |
---|---|
Preço: | Negociável |
Detalhes da embalagem: | Caixa de voo, estojo de madeira, caixa, depende de você. |
Tempo de entrega: | 7-10 dias úteis após receber seu pagamento |
Termos de pagamento: | Western Union, MoneyGram, D/P, T/T, L/C |
Habilidade da fonte: | 5000sqm por mês |
Pixels: | 8mm | Cor de lascas de tubo: | Colorido |
---|---|---|---|
Tipo de LED: | SMD 3535 | Função de exibição: | Vídeo/imagem |
Impermeável: | IP65 | Gabinete: | ferro |
MBI: | 51024 | Ângulo de visualização: | H: 100 V: 50 |
Distância de visualização ideal: | > = 4m | Tensão: | DC5V |
brilho: | Mais de 5000cd/㎡ | Módulo: | 256*128mm |
Destacar: | outdoor waterproof LED display screen,mounted wall curve LED screen,flexible video advertising LED display |
Specification | SCXp8 |
---|---|
Pixel pitch (mm) | 8 |
Pixel Configuration | 1R1G1BSMD3528 |
Pixel Density(dot/) | 15625 |
Module Resolution(W×H) | 40*20 |
Module Size(mm) | 320*160mm |
Cabinet Resolution(W×H) | 96*96 |
Cabinet Size(mm) | 960*960mm |
Unit brightness, chroma adjust | yes |
Brightness | ≥5500CD/ |
Gray scale | RGB12-16BitsEach |
Color temperature (K) | 6500~9500Adjustable |
Horizontal / Vertical Viewing Angle (°) | 110/55 |
Scanning mode | Dynamic |
Frame Frequency (Hz) | ≥60 |
Refresh Frequency (Hz) | 200-2000 |
Max Power Consumption (W/m2) | ≤850W/ |
Average Power Consumption (W/m2) | ≤280W/ |
IP Rating | Front IP 65,Back IP 55 |
Life Span (hrs) | ≥100,000 |
Power supply requirement | AC:220×(1±10%)V,50×(1±5%)Hz |
Temperature Range (℃) | -20~50 |
Humidity Range (RH) | 10%~90%, Nocondensation |
Wooden case or flight case package are available. Shipping by sea, air or DHL, multiple shipping ways for your choice.

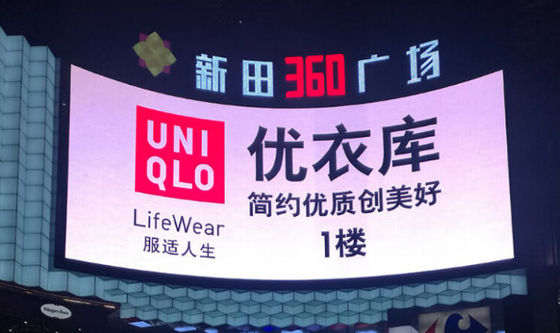

Outdoor LED screen can work under the sun for high brightness and large viewing angle with a certain function of a windbreak, rainproof and waterproof.
Which is widely used as outdoor advertising and information media at station, square and shopping mall. Outdoor LED screen can be divided into a pillared screen, wall-mounted screen, and floor-standing screen, etc.
