Name: P4 Indoor LED Video Wall Screen 4mm SMD2121 IP43 Aluminum Cabinet
Brand: Shenzhen ShiXin Display Technology Co.,Ltd
SKU: P4
Price: 10000.00 USD
Availability: InStock

Casa Produtos anunciando telas conduzidas

P4 Indoor LED Video Wall Screen 4mm SMD2121 IP43 Aluminum Cabinet

Detalhes do produto:

Lugar de origem:	Shenzhen na China
Marca:	SCXK
Certificação:	CE/ROHS/FCC/ISO/UL
Número do modelo:	P4

Condições de Pagamento e Envio:

Quantidade de ordem mínima:	2 pcs
Preço:	Negociável
Detalhes da embalagem:	Caixa de voo, estojo de madeira, caixa, depende de você.
Tempo de entrega:	7-10 dias úteis após receber seu pagamento
Termos de pagamento:	Western Union, MoneyGram, D/P, T/T, L/C.
Habilidade da fonte:	5000sqm por mês

Contato

Descrição de produto detalhada

Pixels:	4mm	Tipo de LED:	SMD2121
Função de exibição:	Vídeo/imagem	Impermeável:	IP43
Gabinete:	Die Catsing Aluminium	MBI:	5124
Ângulo de visualização:	H: 100 V: 50	Tensão:	DC5V
Tamanho do módulo:	320*160mm	Tamanho do gabinete:	640*640mm
Destacar:	P4 indoor LED screen 4mm pitch , LED video wall aluminum cabinet , IP43 rated indoor LED display

P4 Indoor LED Video Wall Screen 4mm SMD2121 IP43 Aluminum Cabinet

P4 Full Color Indoor LED Video Wall Screen 80×40 Module Resolution Advertising Billboards

Product Specifications

Attribute	Value
Pixels	4mm
Led Type	SMD2121
Display Function	Video/Image
Waterproof	IP43

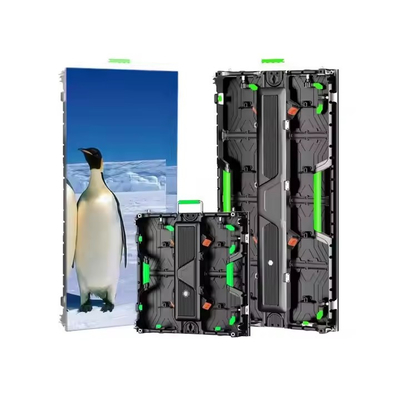

Cabinet	Die casting aluminum
MBI	5124
Viewing Angle	H:100° V:50°
Voltage	DC5V
Module Size	320×160mm
Cabinet Size	640×640mm

Main Features

Super-light weight and Ultra-thin: Only 8 kg in weight for 500×500mm panel, 14kg for 500×100mm panel, 80mm in thickness
With special designed mask and plastic frame, the surface is very smooth and viewing angle is very large
With driver IC MBI 5124 from Taiwan, it's of high refresh rate of 1920 Hz/s. The driver IC can be upgraded to ICN2038 with a refresh rate over 3840 Hz/s
With fast lock system, easy to install and dismantle
Flexible installation, can be stacked on floor or hung on truss
Adjustable curve. With angle regulator, the arc can be adjusted to 10° concave to 10° convex
The same panel is compatible with P3.91, P4.81, P5.95 and P6.25 outdoor and indoor LED display

Production Process

Incoming Inspection
SMD
Plug-in
Wave Soldering
After Welding
Testing
Semi Finished Aging
Module Assembly
Gluing
Finished Aging
Detection Finishing Warehousing

Technical Specifications

Parameter	Specification
Lamp size	2121
Resolution/mm	4
Pixel configuration	RGB 3 in 1
Pixel density/pixels/m²	40000/m²
Module resolution	80×40
Module size/mm	320×160
View distance	≥0.5m
Single point brightness adjust	Can be added
Single point color adjust	Can be added
White balance brightness	>1000cd/㎡
Color temperature	6500K-9500K
Horizontal view angle	120°
Vertical view angle	60°
Signal Process bit	10 or 14 bit
Grey process	1024×1024×1024/16834×16834×16834/65536×65536×65536
Control distances	Internet cable:100m, multimembrane:500m, monofilm:5km
Driving mode	Constant driving current
Scanning mode	1/20
Frame rate	60Hz
Refresh frequency	>3000Hz
Control mode	Computer synchronous
Brightness adjusted range	Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss
Out of control point	<1/10000
Working hours	≥72hours
Mean Time Between Failure	>5000hours
Life time	100000hours
Life-all-white (brightness halving)	50000hours
Environment temperature range	Operating temperature range: -20-45℃ Storing temperature range: -30-65℃
