Lugar de origem: | Shenzhen na China |
Marca: | SCXK |
Certificação: | CE/ROHS/FCC/ISO/CB |
Número do modelo: | P10 |
Quantidade de ordem mínima: | Sem limite |
---|---|
Preço: | Negociável |
Detalhes da embalagem: | Caixa de voo, estojo de madeira, caixa, depende de você. |
Tempo de entrega: | 7-10 dias úteis após receber seu pagamento |
Termos de pagamento: | T/T, Western Union |
Habilidade da fonte: | 5000sqm por mês |
Pitch de pixel: | 10mm | Cor de lascas de tubo: | Colorido |
---|---|---|---|
Tipo de LED: | SMD 3535 | Função de exibição: | Vídeo/texto/imagem |
Material do gabinete: | Ferro | Frequência de quadros: | > = 60Hz |
Média sem falha: | > = 1000 horas | Distância transmitida: | Cabo da Internet <100m |
Taxa de atualização: | > = 1920Hz | Fonte de energia: | AC80-260V ± 10%/50Hz,60Hz |
Destacar: | SMD IP65 outdoor LED display,P10 full color LED billboard,building advertising LED screen |

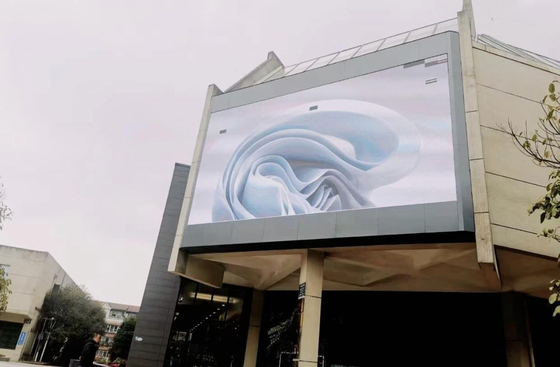

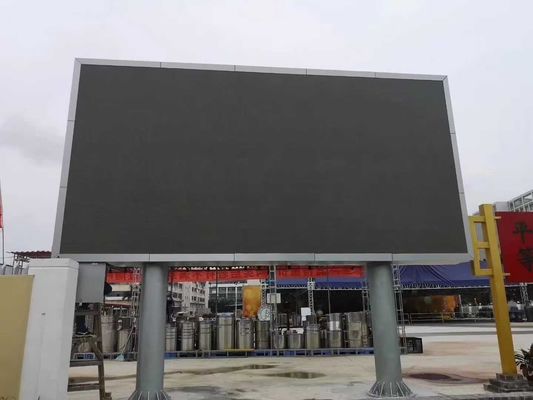

SMD IP65 Outdoor Full Color LED Display Screen P8 P10 Building Advertising LED Billboard
Parameter | Specification |
---|---|
Resolution/mm | 10 |
Pixel configuration | 1R1G1B |
Pixel density/pixels/m² | 10000m2 |
Module resolution | 32*16 |
Module size/mm | 320*160 |
View distance | 10-300m |
Single point brightness adjust | Can be added |
Single point color adjust | Can be added |
White balance brightness | >5000cd/㎡ |
Color temperature | 6500K-9500K |
Horizontal view angle | 120(degrees) |
Vertical view angle | 60(degrees) |
Signal Process bit | 10 or 16bit |
Driving mode | Constant driving current |
Scanning mode | static dring |
Frame rate | 60Hz |
Refresh frequency | 3000Hz |
Control mode | Computer synchronous |
Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
Out of control point | <1/10000 |
Working hours | >72hours |
Mean time Between Failure | >500hours |
life time | >100000hours |
Envirornment temperature range | operating temperature range -200c-500c |
Maximun power :/m2 | <800w |
Average power:/m2 | <300w |
Self-check technolog | LEDspot self-check,communication check,power check,temperature monitor(need customization) |
Remote monitoring | Remote supervision and control,record potential fault send out warning signs to the operators(need customization) |
Software environment | windows NT,Windows 1999,Windows XP |
Input power cable | AC110v to220v |
Signal input | DVI |
Warranty | 2years quality warranty ,10 years spare parts support |
To be the premier provider of creative, marketing and innovative solutions devoted to helping other companies succeed and grow.
Packing: wooden case, flight case for choose
Shipping: by air, sea, train, DHL, you are the boss
